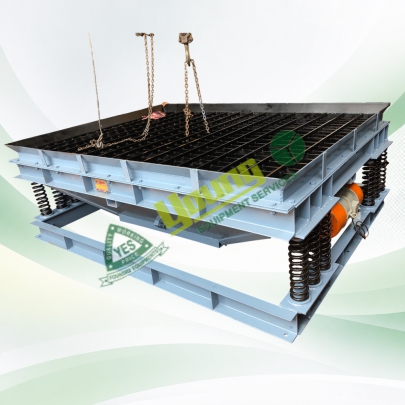

Knock Out : "YES" Knock out is used for saperating poured casting from the mould. Structure made from heavy M.S. material for continuous heavy & hard use. Continuous knocking operation helps to break the lumps. Grid is replaceable and bolted on top of the frame. For smooth discharge of knocked out sand, Frame is slopping at bottom.
Knock Out : "YES" Knock out is used for saperating poured casting from the mould. Structure made from heavy M.S. material for continuous heavy & hard use.
Continuous knocking operation helps to break the lumps. Grid is replaceable and bolted on top of the frame. For smooth discharge of knocked out sand, Frame is slopping at bottom.
| Deck Size L x W - m.m. | Gride Opening m.m. | Electric H.P.0 | Capacity M.T. (apprx.) |
| 750 x 600 | 50 x 25 | 2 | 0.5 |
| 900 x 750 | 100 x 25 | 3 | 1 |
| 1200 x 900 | 100 x 25 | 5 | 2 |
| 1500 x 1000 | 100 x 25 | 7.5 | 3 |
| 1500 x 1200 | 100 x 25 | 10 | 4 |
| 1800 x 1200 | 100 x 25 | 12.5 | 5 |
| 2100 x 1500 | 100 x 25 | 15 | 7 |
